Stellarator Examples, Equations, and Literature Links

This page is the user-facing guide for the 3D stellarator examples in examples/geometry-3D/stellarator-fci/. The examples are intentionally written like SIMSOPT driver scripts: constants are defined near the top, reusable objects are imported from drbx, and the script runs from top to bottom. This mirrors the workflow described in the SIMSOPT overview, where problems are configured in ordinary Python scripts rather than hidden inside large input-file front ends. SIMSOPT itself documents the same modular style for stellarator geometry and Biot-Savart fields in its magnetic-field API guide.

The current examples are small enough to run on a laptop. They are not device-grade stellarator turbulence predictions; they are educational and validation-oriented scripts that show the same geometry, field-line-map, operator, plotting, and artifact APIs used by the regression campaigns.

Example Map

Example Purpose Main APIs
geometry_plotting.py Build a deterministic non-axisymmetric geometry, export arrays, and plot surfaces, ( B
linear_mode.py Evolve a single field-aligned mode with linear drive, damping, parallel FCI diffusion, and perpendicular diffusion. laplace_parallel_fci, laplace_perp_xz, save_stellarator_sol_snapshot_panel
vorticity_bracket.py Compose the JAX-native DRB RHS with a vorticity/potential solve and a tested logical \(E\times B\) bracket. compute_fci_drb_rhs, logical_exb_bracket_xz, save_stellarator_sol_diagnostics_panel
nonlinear_turbulence.py Run the compact nonlinear reduced SOL benchmark and write snapshot, diagnostic, 3D poster, and GIF movie artifacts. simulate_reduced_stellarator_sol_dynamics, build_stellarator_sol_showcase_report, save_stellarator_sol_3d_movie
turbulent_profile_analysis.py Analyze the nonlinear SOL history with radial fluctuation profiles, RMS intensity, transport-proxy profiles, connection-length weighting, and nonlinear energy traces. build_synthetic_stellarator_geometry, NumPy/Matplotlib postprocessing of the NPZ history written by nonlinear_turbulence.py
validation_campaign.py Regenerate the full promoted stellarator validation package. Campaign builders in drbx.validation

Run an example with:

PYTHONPATH=src python examples/geometry-3D/stellarator-fci/vorticity_bracket.py
PYTHONPATH=src python examples/geometry-3D/stellarator-fci/nonlinear_turbulence.py
PYTHONPATH=src python examples/geometry-3D/stellarator-fci/turbulent_profile_analysis.py

Every script writes arrays and figures under docs/data/stellarator_fci_example_artifacts/.

Expected Output

The examples regenerate lightweight versions of the promoted validation figures. The publication-quality validation gallery remains release-hosted so the repository stays small, but the scripts expose the same plotting functions used to create these artifacts.

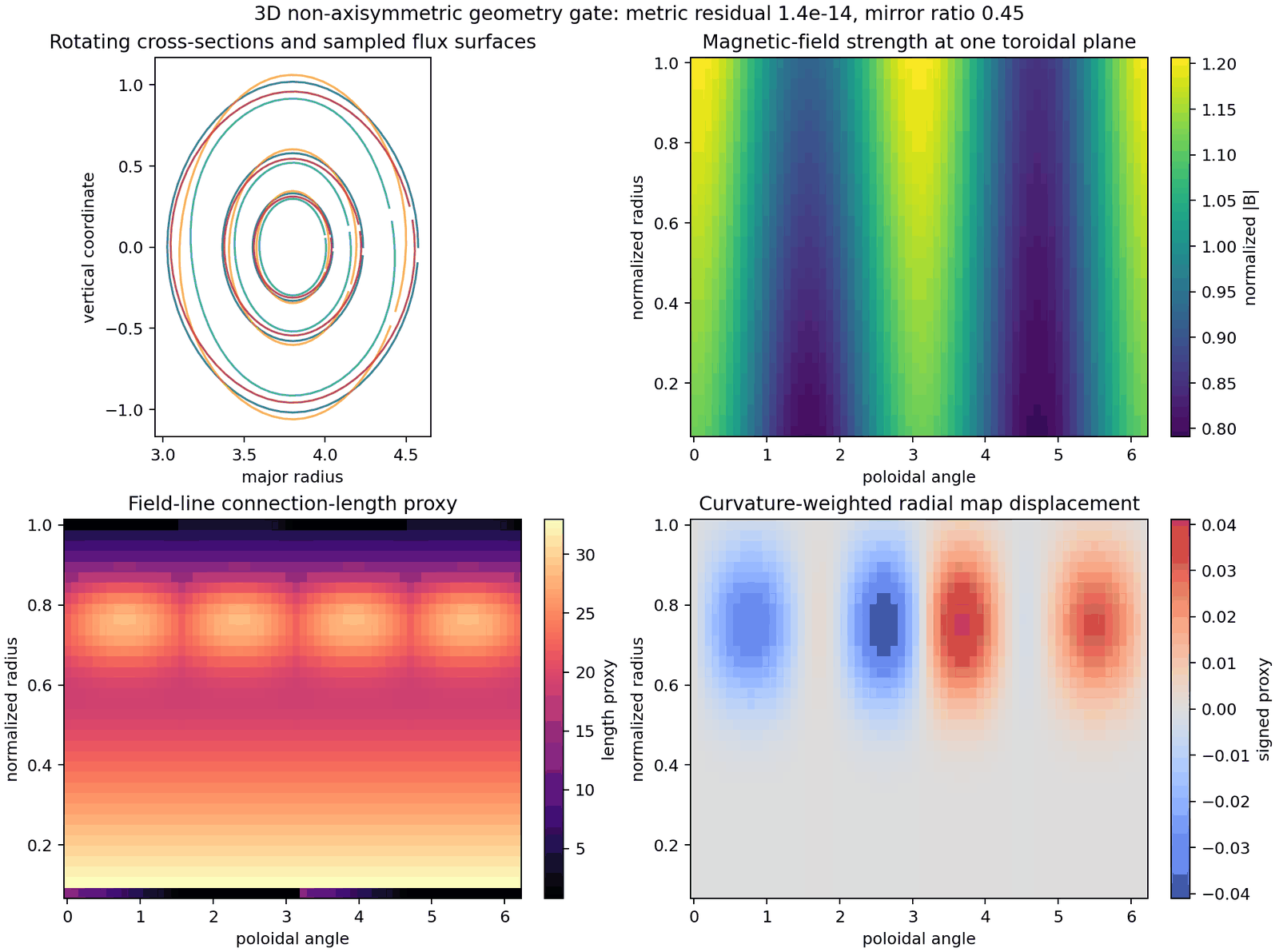

Stellarator FCI geometry validation

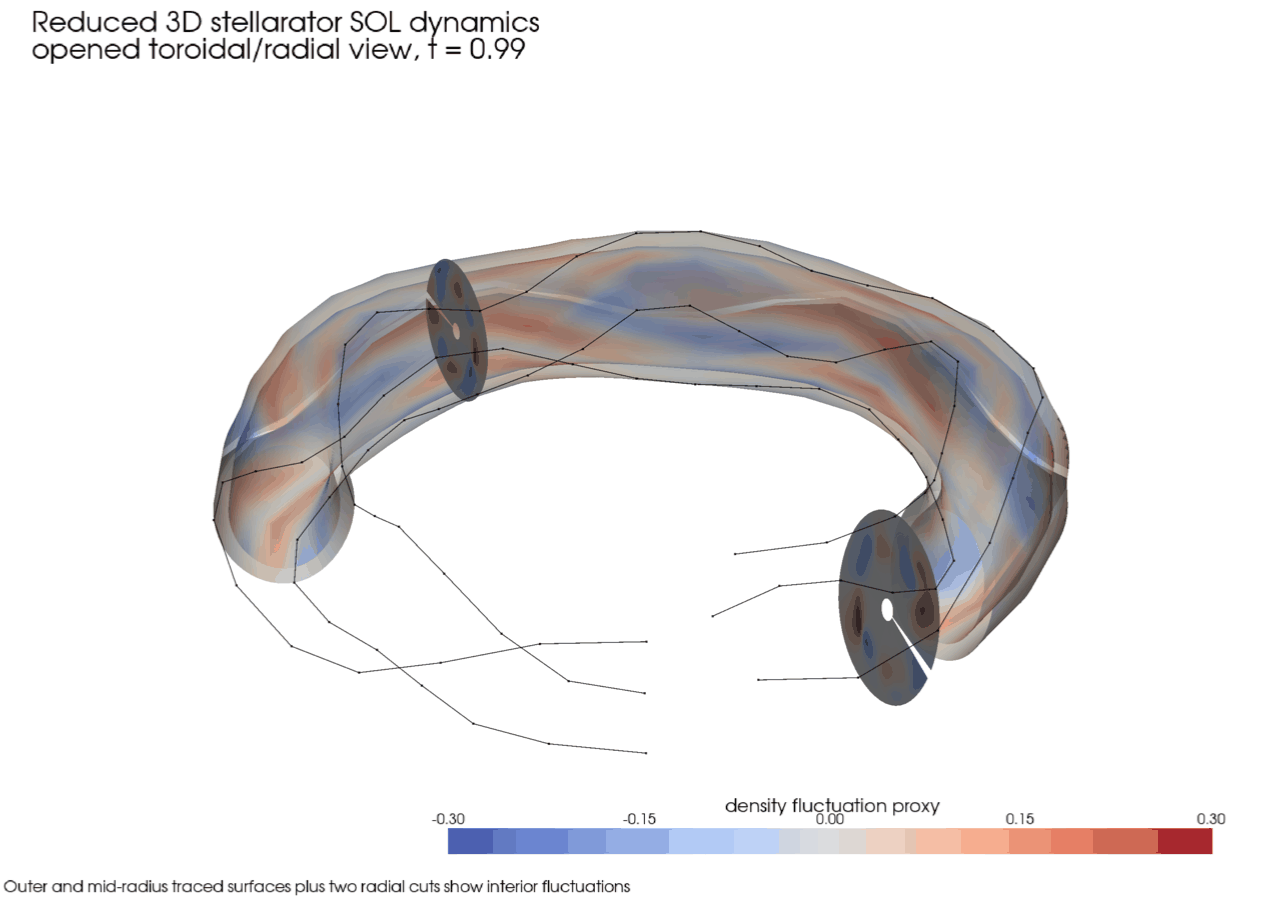

Stellarator reduced SOL opened 3D view

Geometry

The analytic validation geometry is constructed in src/drbx/geometry/stellarator.py. It is a deterministic, five-period, non-axisymmetric shell with rotating elliptical cross-sections, helical mirror modulation, an island-like FCI map displacement, a curvature proxy, and a connection-length proxy. In logical coordinates \(x^1=s\), \(x^2=\phi\), \(x^3=\theta\), the physical position is

r(s, phi, theta) = (R(s, phi, theta) cos(phi),
                    R(s, phi, theta) sin(phi),
                    Z(s, phi, theta)).

The metric terms used by the conservative operators are

e_i = partial r / partial x^i,
g_ij = e_i dot e_j,
J = sqrt(det(g_ij)),
g^ij = inverse(g_ij).

The geometry campaign checks finite metric entries, \(J>0\), \(|B|>0\), and \(\max |g^{ik}g_{kj}-\delta^i_j|\) near roundoff. This mirrors the verification pattern used in recent non-axisymmetric edge-fluid work, where metric tests, field-line maps, target-aware geometry, and 3D visualization precede turbulence claims; see the open-access GRILLIX stellarator extension paper.

Field-Line-Map Operators

The field-line-map layer follows the flux-coordinate-independent idea: the mesh does not need to be a magnetic-flux coordinate grid, but parallel operators use forward and backward field-line intersections on neighboring toroidal planes. The original FCI method is described by Hariri and Ottaviani, Computer Physics Communications 184, 2419-2429 (2013), and later X-point applications are discussed in Hariri et al., Physics of Plasmas 21, 082509 (2014).

In drbx, the map object is FciMaps. If \(I\) is bilinear interpolation in logical \((s,\theta)\), then

f_up(i,j,k) = I[f(:, j+1, :)](x_fwd(i,j,k), z_fwd(i,j,k)),
f_dn(i,j,k) = I[f(:, j-1, :)](x_bwd(i,j,k), z_bwd(i,j,k)).

The compact centered operators in src/drbx/native/fci.py are

grad_parallel(f) = (f_up - f_dn) / (2 Delta phi),
L_parallel(f) = (f_up - 2 f + f_dn) / Delta phi^2.

The conservative diffusion form used for neutral and scalar gates is

L_K f = J^{-1} partial_parallel(J K partial_parallel f),

implemented by mapped face fluxes and zero-flux treatment when a traced map hits an open endpoint.

Linear Mode Example

linear_mode.py is the smallest way to see a time-dependent stellarator calculation. It initializes one mode,

n_tilde(s, phi, theta, 0)
  = exp(-((s - s0) / w)^2) cos(m theta - n phi),

and advances

partial_t n_tilde
  = chi_parallel L_parallel(n_tilde)
  + chi_perp L_perp(n_tilde)
  + gamma_C C(s, phi, theta) n_tilde
  - gamma_d n_tilde.

This is deliberately linear, so the mode energy should evolve smoothly. The script exports the history as NPZ and uses the same plotting functions as the nonlinear campaign, allowing users to compare linear growth/decay against the nonlinear example without changing plotting code.

Vorticity and Bracket Example

vorticity_bracket.py is the recommended first script for nonlinear stellarator physics. It builds a full FciDrbState, calls compute_fci_drb_rhs for sheath/recycling, neutral reaction-diffusion, charge exchange, vorticity diffusion, and potential inversion, then advects density, pressure, and vorticity with the tested logical bracket logical_exb_bracket_xz:

{phi, f}_{s,theta}
  = (partial_theta phi partial_s f - partial_s phi partial_theta f) / B.

This is the discrete \(E\times B\) nonlinear coupling used by the compact non-axisymmetric demonstration. The coefficients in the example are labeled as explicit timestep/model strengths, not fitted physical constants. For publication-grade turbulence claims, use this script as a starting point and then run grid-refinement and timestep-sensitivity campaigns before interpreting the resulting transport metrics.

Nonlinear Reduced Turbulence Example

nonlinear_turbulence.py calls simulate_reduced_stellarator_sol_dynamics. The compact reduced model evolves a fluctuation proxy according to

partial_t n_tilde
  = chi_parallel L_parallel(n_tilde)
  + chi_perp L_perp(n_tilde)
  + alpha C partial_s n_tilde
  + N[n_tilde]
  + S(s, phi, theta, t)
  - beta n_tilde
  - gamma n_tilde^3.

Here \(C\) is a curvature proxy, \(N\) is a reduced nonlinear transfer proxy used for fast movie QA, and the cubic term prevents the compact explicit run from becoming an unbounded drive test. Use vorticity_bracket.py when the goal is to inspect nonlinear coupling through a potential/vorticity solve rather than a scalar visualization benchmark. The outputs include R-Z panels at multiple toroidal angles, fluctuation RMS, skewness, radial-flux proxy, a toroidal-poloidal spectrum, and a 3D opened-surface view.

The result diagnostics are patterned after the stellarator SOL literature, where fluctuation levels, skewness, coherent structures, spectra, radial flux, connection length, and target geometry are all part of the interpretation; see the stellarator island-divertor turbulence articles linked from docs/stellarator_fci_validation.md, and the broader edge/SOL modeling context in the GBS code paper, and GENE-X edge/SOL paper.

After the nonlinear script writes the NPZ history, run turbulent_profile_analysis.py to create a compact profile-analysis figure. The profile script bins the final fluctuation field and time-RMS intensity over normalized radius, computes a curvature-weighted radial-flux proxy, compares it with a connection-length weighted amplitude, and plots the nonlinear energy trace. These are lightweight analysis diagnostics rather than a replacement for the promoted validation campaign, but they teach the same profile-and-transport workflow users need before moving to larger 3D cases.

JAX Execution Model

The example kernels are written with jax.numpy arrays and pure functions, so they can be staged into XLA with jax.jit, batched with jax.vmap, and differentiated where the control flow is JAX-transformable. This follows the official JAX model of composable transformations described in the JAX documentation, especially the JIT compilation guide.

The practical rule is:

file IO, plotting, and report writing: ordinary Python
geometry arrays, field-line maps, RHS kernels: JAX arrays and pure functions

That boundary is why the examples first build or load a geometry object, then call JAX-native kernels, and only at the end write NPZ/PNG/GIF artifacts.

What To Modify First

Change these constants first in the examples:

  • NX, NY, NZ: grid size and runtime.
  • FRAMES, SUBSTEPS_PER_FRAME, DT: temporal resolution.
  • ISLAND_AMPLITUDE, MIRROR_AMPLITUDE, IOTA_AXIS, IOTA_EDGE: geometry and field-line-map character.
  • CHI_PARALLEL, CHI_PERP, LINEAR_DRIVE, LINEAR_DAMPING: linear-mode physics.

Use the validation campaign before interpreting new geometry as physics:

PYTHONPATH=src python examples/geometry-3D/stellarator-fci/validation_campaign.py
PYTEST_DISABLE_PLUGIN_AUTOLOAD=1 PYTHONPATH=src python -m pytest -q tests/test_validation_stellarator_fci_campaigns.py
