Examples And Artifact Map¶

Every example is a flat pedagogical script with the same anatomy: imports, a PARAMETERS block near the top (every physics and numerics choice in one place, commented), explicit setup, a run loop with progress prints, then plotting and a JSON/NPZ summary. Edit the constants, run the file, inspect the output directory — the SIMSOPT-style workflow. The narrative walkthroughs in the Tutorials section explain the flagship scripts line by line.

Run any example from the repository root with:

PYTHONPATH=src python examples/<group>/<name>.py

For a capability-by-capability map that links every major feature to its inputs, outputs, source modules, tests, and documentation page, see Feature Reference.

Tokamak (closed field lines)¶

Example	What it teaches
examples/tokamak/drift_wave_turbulence.py	Hasegawa-Wakatani turbulence from noise: instability growth, outward particle flux, vorticity movie. Tutorial.
examples/tokamak/drift_wave_inverse_design.py	Autodiff through the turbulence: transport sensitivities vs finite differences, gradient-descent recovery of the drive.

Open-field-line SOL and neutrals¶

Example	What it teaches

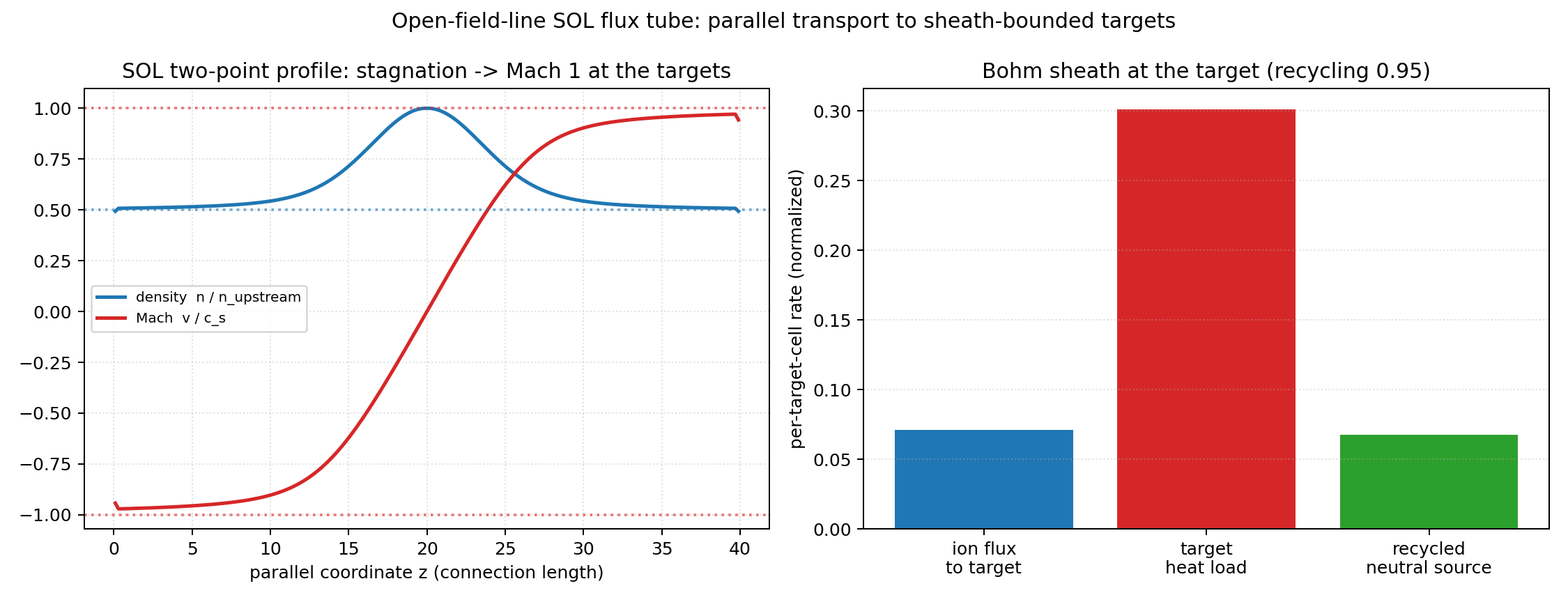

examples/sol/open_sol_flux_tube.py	Open slab flux tube with Bohm sheath targets; relaxation to the two-point steady state; sheath/recycling accounting. Tutorial.
examples/sol/recycling_sol.py	Coupled plasma + recycled neutral with AMJUEL rates; neutral cushion; detachment-onset density scan.

Stellarator (3D FCI, closed and open)¶

Example	What it teaches
examples/stellarator/rotating_ellipse_fci.py	Rotating-ellipse geometry with autodiff metric; second-order FCI parallel-operator convergence. Tutorial.

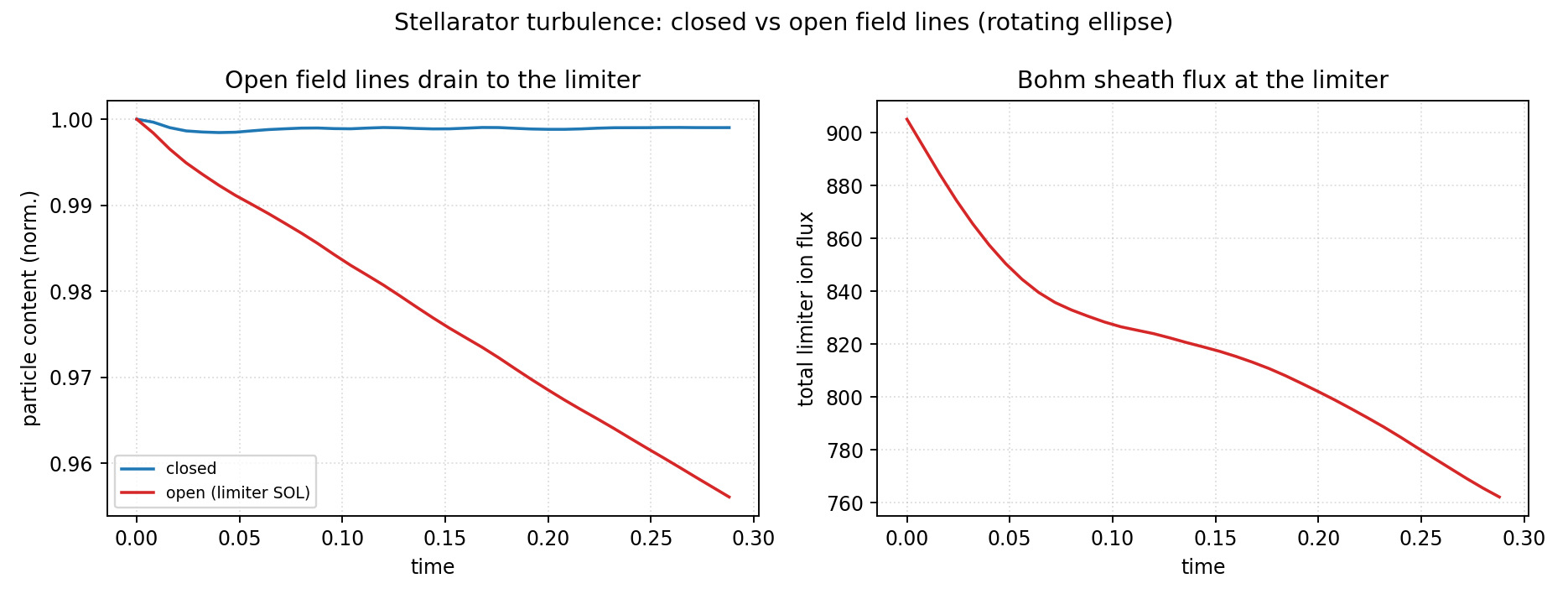

examples/stellarator/stellarator_turbulence.py	4-field interchange turbulence, closed vs limiter-open, with cross-section movies and sheath drainage.
examples/stellarator/island_divertor.py	Resonant island chain and an emergent stochastic SOL.
examples/stellarator/rotating_ellipse_filament.py	Blob/filament dynamics on the rotating ellipse.
examples/stellarator/stellarator_3d_render.py	3D rendering of turbulence on traced flux surfaces.
examples/stellarator/fci_differentiable.py	Gradients through the FCI geometry and reduced dynamics (details).

Benchmarks¶

Example	What it teaches
examples/benchmarks/linear_dispersion.py	Drift-wave, shear-Alfven, and interchange dispersion vs analytic relations (page).
examples/benchmarks/linear_drb_survey.py	Parameter survey of the linearized-DRB regimes (hydrodynamic/adiabatic drift waves, Alfven, interchange).

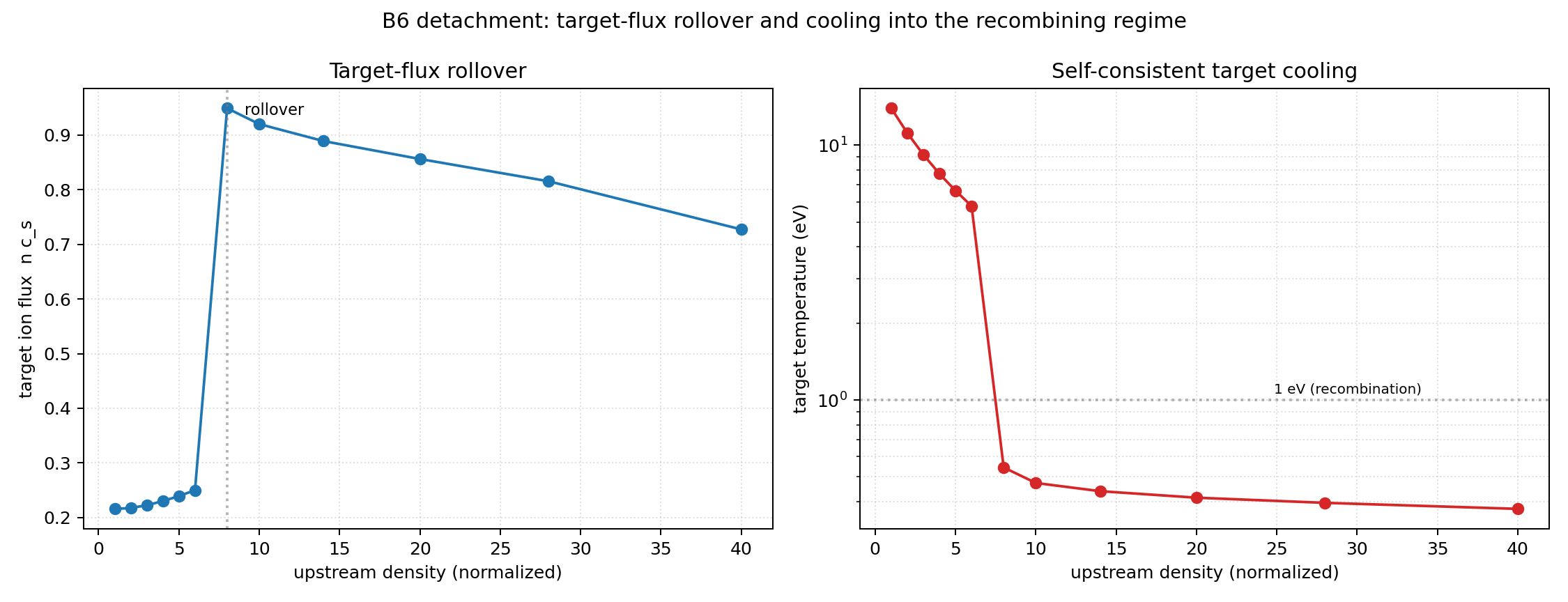

examples/benchmarks/b6_detachment_rollover.py	SD1D detachment benchmark: target-flux rollover and sub-1-eV target cooling. Tutorial.
examples/benchmarks/performance_benchmark.py	Turbulence throughput and gradient-cost measurements (page).
examples/benchmarks/fci_sharded_strong_scaling.py	Multi-device shard_map strong scaling with per-shard core binding.

Autodiff¶

Example	What it teaches
examples/autodiff/differentiation_methods.py	Forward vs reverse vs checkpointed gradients on the same turbulence rollout, with measured costs.

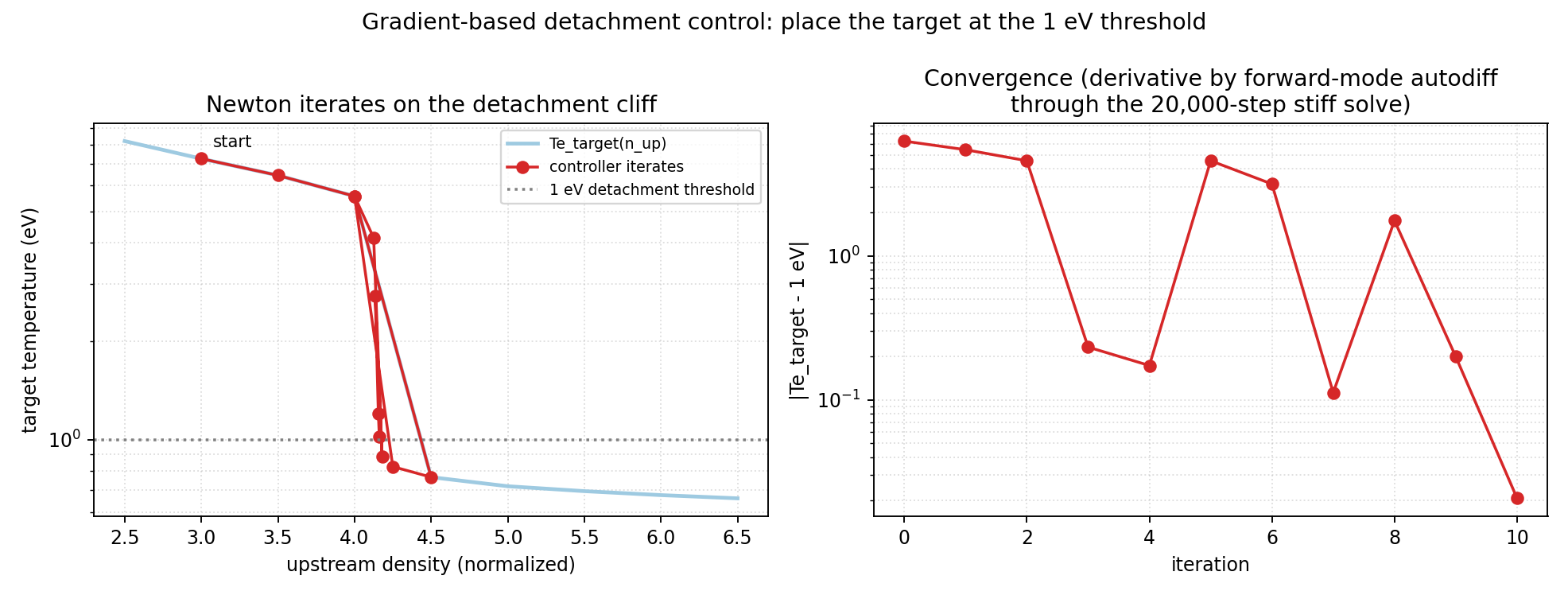

examples/autodiff/detachment_control.py	Newton control of the detachment front using forward-mode sensitivities through the stiff SOL solve.
examples/autodiff_diffusion_sensitivity.py	jax.grad sensitivity against finite differences on the compact diffusion lane.
examples/autodiff_diffusion_uncertainty.py	Covariance pushforward vs vectorized Monte Carlo.
examples/autodiff_diffusion_inverse_design.py	Gradient-based inverse-design loop.
examples/strong_scaling_diffusion.py	Fixed-work CPU/GPU process-group scaling on a differentiable objective.

Native runtime (TOML decks)¶

Example	What it teaches
examples/inputs/restartable_diffusion.toml	Small native TOML deck with restartable output.
examples/restartable_diffusion_tutorial.py	End-to-end run, restart, NPZ reading, and plotting workflow (tutorial).
examples/diffusion_precision_benchmark.py	Float32/float64 runtime comparison on the compact diffusion lane.
examples/model_selection_guide.py	Which model/lane to choose for a given question.

Imported 3D geometry (examples/geometry-3D/)¶

The synthetic stellarator-FCI scripts are self-contained; the imported-field scripts need the named external checkout (ESSOS, VMEX) or run in dry-run mode against release-backed arrays.

Example	What it teaches
stellarator-fci/geometry_plotting.py	Synthetic non-axisymmetric geometry, metric, connection-length, and curvature maps (guide).
stellarator-fci/linear_mode.py	Linear FCI mode history and snapshots.
stellarator-fci/vorticity_bracket.py	Nonlinear coupling through the vorticity/potential solve and the logical E x B bracket.
stellarator-fci/nonlinear_turbulence.py	Compact nonlinear reduced SOL history, diagnostics, 3D poster, GIF movie.
stellarator-fci/turbulent_profile_analysis.py	Radial fluctuation, RMS, transport-proxy, and energy-trace analysis.
stellarator-fci/validation_campaign.py	Full promoted synthetic stellarator FCI validation bundle.

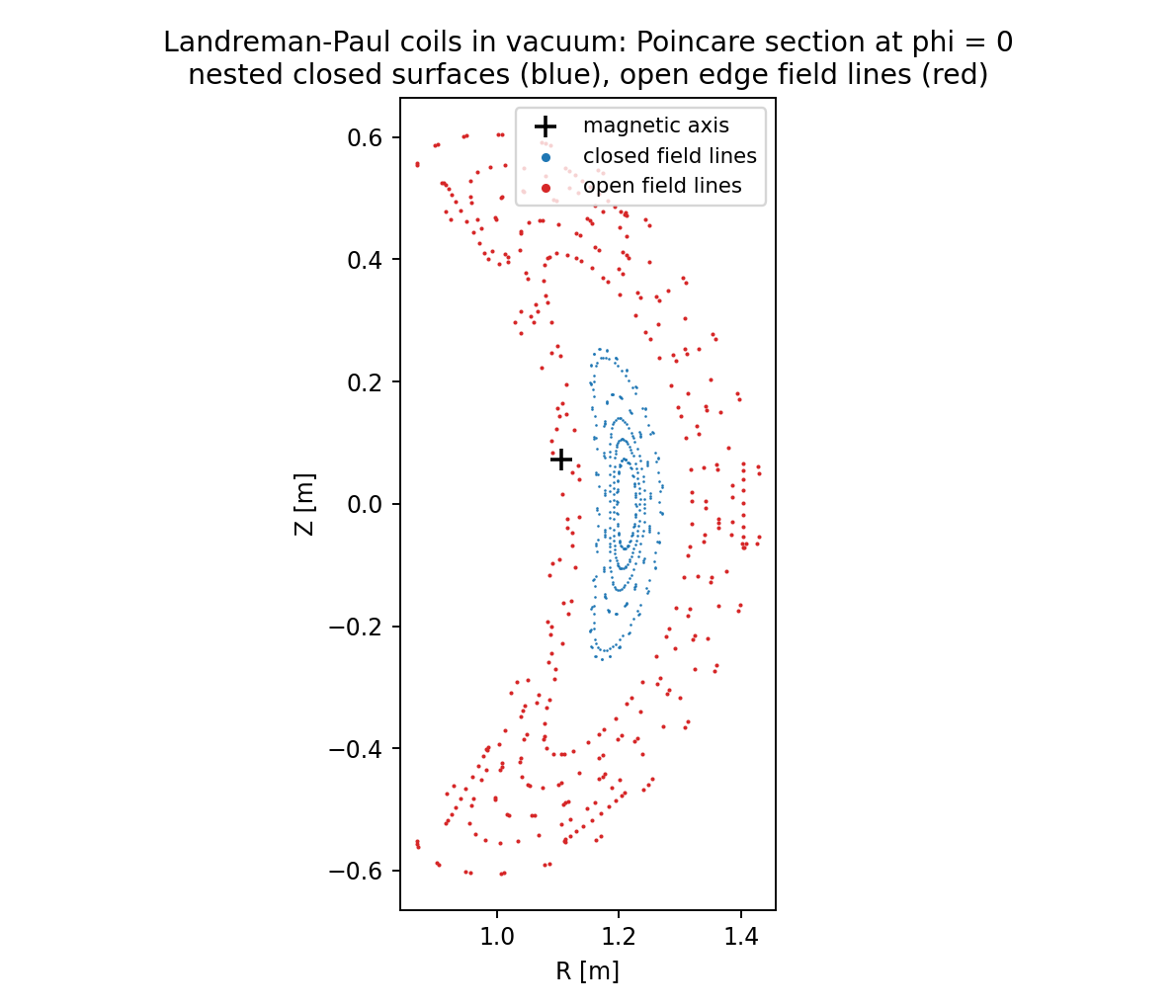

essos-field-lines/closed_open_vacuum_poincare.py	Closed vs open vacuum field lines from ESSOS coils: Poincare sections and connection lengths.
essos-field-lines/landreman_paul_qa_import.py	External QA field-line import into portable arrays (page).
essos-field-lines/direct_coil_open_sol.py	Direct-coil open-SOL promotion workflow (dry-run contract by default).
essos-field-lines/hybrid_open_sol.py	Hybrid VMEC/coil open-SOL promotion workflow.
essos-field-lines/vmec_closed_field.py	VMEC closed-field control with opt-in live periodic FCI gates.
vmex/closed_field_lines.py	VMEX equilibrium import: surface fields, JAX field-line tracing, traced iota matching the wout iotaf profile to ~1e-6.
vmex/closed_open_field_lines.py	ESSOS coil field with the VMEX LCFS overlay: closed core vs open SOL in one picture.
vmec-extender/imported_field.py	VMEC-extender field-grid import and compact SOL verification gate (page).

The remaining essos-field-lines/imported_* campaign scripts regenerate the legacy imported-geometry validation artifacts documented in ESSOS Imported FCI Validation; they are developer workflows that expect a local geometry checkout.

Release-backed artifacts¶

Full-resolution legacy campaign media and NPZ payloads are release-hosted so the repository stays small. All images embedded in the docs are committed compressed copies under docs/media/. To restore the release bundles locally:

gh auth login --hostname github.com   # or set GH_TOKEN / GITHUB_TOKEN
python scripts/fetch_example_artifacts.py
